ACDB

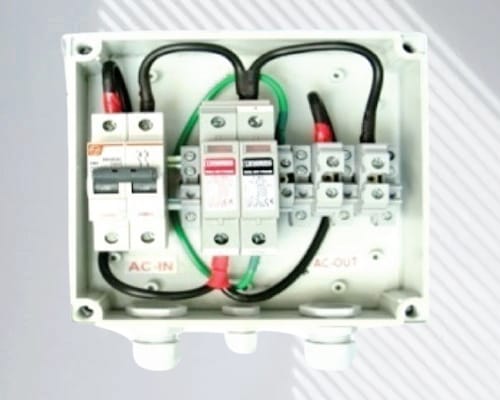

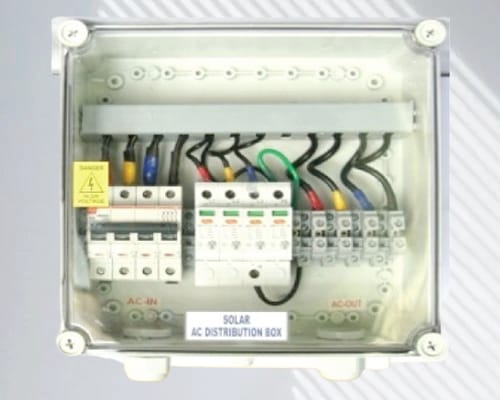

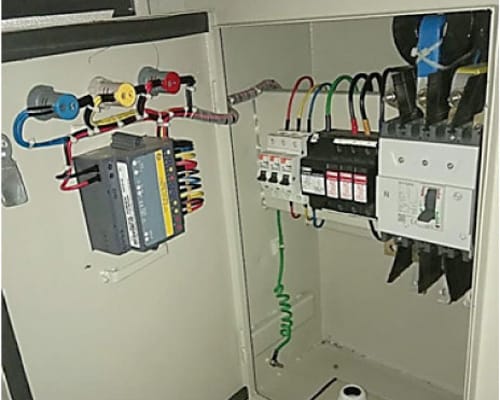

Solar ACDB – is an important part of SPV system. It gives extra protection to the system in case of failures on load side.ACDB is made up of breaker, isolators, voltage and current monitoring etc. To ensure maximum protection to the sophisticated electronic equipment, It has provision for surge protection in the box along with fuses. Also ACDB have energy meter which help you to know how much energy you are using or withdrawing from the solar energy.AC Distribution Box incorporates 4 pole MCB. MCCB, terminals, voltage and current monitoring etc.

• The ACDB receives AC power from solar inverter and directs it to AC loads.

• A provision can also be made in ACDB to monitor the consumption of power from SPV Power Plant.

• Our ACDBs are designed to deliver high performance and added protection by isolating inverter from mains as and when required.

• AC Distribution boxes are tested/certified as per IEC/IS standard.

• Every terminal is secured and weather proof even for outdoor applications also, highly secure wiring, besides being insulated with PG Cable Gland or built-in MC4 terminal connector on demand.
